View Article  EWR Project - Phase Nine (Part 2) - Dang Stems...
My dentist put pay to my Sunday ride (an un-blogworthy story) but just think Texas Chainsaw Massacre and you'll get close to the Codeine popping pain I'm currently in...

So, where were we?....oh yeah, continuation of Thursday's Steam Tweak.....Ok, anyone that has fitted a Syncros stem and not wanted to damage/scratch their bars will be well aware of what we call in the UK 'The 2p Trick' (some of you might well know this as the Dime Trick or Euro Trick ). It's the one where you unthread the alloy bolts from the bar clamp, feed them in from the underside against a coin and force open the bars wide enough so that they don't scratch your beloved NOS-ness as you slide on your new stem. Well, I'm using riser bars on the EWR so we have all those bends to negotiate so we're into a whole bunch of fun with these!!!

You see, the 2p Trick spreads the clamp using the maximum of the bolt thread, plus the thickness of the coin......and the stem is aluminium, which don't like being bent....EVER!!

The '2p Trick'



So, we start with the 2p Trick and voila, the Cattlehead stem glides round the first bend gracefully

Round the first bend




I start to feel confident and everything on earth was at peace......UNTIL, we get to the centre bulge on the bars
.

This is where you need to grow a set of balls as big as that Bull I posted up on here a while back and go for the 'Open Wide And Say My Name' 8p Trick.

The 8p trick is FOUR 2p coins and my NOS Syncros stem stretched wide open to heart stopping, this baby's gonna crack, proportions

If I open any wider I'm gonna split asunder



Someone was on my side, I got round the second bend and quickly cranked the stem back up tight. Not had a chance to ride the bike yet and I'm into that whole messy, sloping top cap rubbish you get with Syncros stems (say goodbye to another lovely King Top Cap...)


Third stem on my EWR, third time lucky?

View Article  EWR Project - Phase Nine, another week another stem...
We're still deep in Dial Time on my Woods Bike so here we are with yet another stem, the third one now

This one aesthetically is perfect for the build as its a NOS Syncros Cattlehead in 10° rise flavour so it's the right amount of rise and will match the cranks and seatpost, however, for me its all about how it rides so if it doesn't do the job then it's off the bike. I only collected it last night so sadly it won't be installed for tonight's weekly Night Ride but I'll try and get in on for the weekend.

I was trying to avoid Syncros on this build, not cos I hate it but cos I've got Syncros on every other bike I own and I wanted to shake off the stigma, oh well I'll just have to make sure the next build is Syncros Free

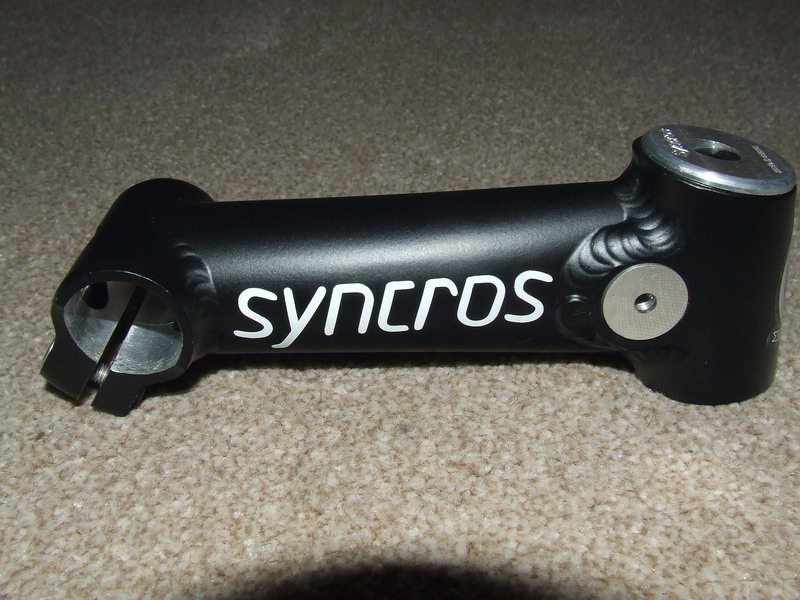

Mmmmmm NOS Syncros



Mmmmmm...more NOS Syncros

View Article  EWR Project - Phase Eight....tweaks & eBay scoreage
No Sunday ride today, just some minor tweaks on my Woods Bike. I've been having problems with shifts to the granny ring, the Front Mech has been throwing the chain.....turns out to be a schoolboy error, I had the granny ring on the wrong way round

If you look at the picture below you can see the profile of the ring is raised on one side and I had it fitted the other way, closing the gap between the middle ring just enough for the chain to 'miss' the ring when down shifted from middle, I switched this round and tweaked the stop adjustment and its near perfect.

SGX Granny ring showing profile



Previously fitted.....wrong !!



Got a good result on eBay recently, a pair of NOS M-650 DX hubs, complete with Quick Release skewers for £15 . A fellow RetroBiker in the USA assisted with getting these to me as the US seller wouldn't ship out of America. These are gonna get laced to the Campag Mirox in place of the black LX hubs I have on there now.

Mmmmmm.....NOS hubs
